BRITCO provides two type of Belt Cleaners. Primary conveyor belt cleaners or Pre-Cleaners and Secondary Belt Cleaners. Both types of Belt Cleaners are an essential part of any conveyor system. It is vital to scrape conveyor belts clean and eliminate problems with carryback and spillage. Conveyor Belts carry bulk material product and Belt Cleaners prevent it from falling off at various points of the conveyor along the return side of the belt causing various housekeeping and conveyor belt maintenance problems. Carry back issues can lead to:

BRITCO BELT CLEANER

Eliminate Your Conveyor Carry-back Problems

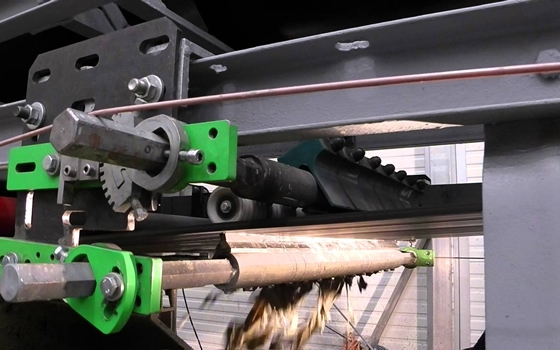

Our newly enhanced Britco series of conveyor belt pre-cleaners have been installed and have solved carry-back problems all over the world. The simple and highly effective Britco belt cleaner removes carry-back from the conveyor system.

E-Z Britco Tensioner  (lifetime warranty) patented  made of all 304 stainless steel mounting plates, collars and springs allows theblades to self adjust throughout the entire life of the blade and is the most robust and accurate belt cleaner tensioner in the industry.

Blade-Wear Indicator  allows to monitor blade wear easily without having to shut the system down for inspection.

Torque Spring  provides a greater degree of tensioning per inch of blade, verses compression springs which require more tensioning adjustment for the life of the blade.

Rubber Corrugated Dust Covers and UHMW Bushings  ensures no build-up in the spring tensioning area and provides smooth non-binding tensioning.
Quick-Change Blade  stainless steel pin blade change-out system uses no-tools.
Optional  Ceramic (XC) blade available for high speed, high tonnage conveyor systems.
Easily Maintained  and tensioned from one side of the conveyor.
MSHA Accepted  #MSHA IC ? 174/1
Blade Angle
A flat pulley surface side of the blade ensures a sharp point contact and material clearance

* More Aggressive
* Self-Sharpening
* Less Abrasion Between Blade and Belt
* Less Chance of Blade Feathering

Product Specifications

* Maximum Belt Speed  1000fpm (5.0 m/sec)
* Pulley Diameter  12´ , 36´ (300 , 900mm)
* Applications  Coal Fired Power Plants, Hard Rock Mining, Steel Mills,
Iron Ore, Aggregate and Mineral (Phosphate, Potash, Salt) Mining
Skalper with E-Z Britco Tensioner

* Simple and Accurate
* Superior Elasticity
* Excellent for worn belts
* Stainless steel pin with lanyard
for easy change-out
* Single hand tensioner
* Torque wrench adaptor supplied
to get accurate torque tension.  100% Lifetime warranty
* US Patent Number 5,992614


RAZOR-BRITCO BELT CLEANER

Mechanical Splices? No Problem.The Razor-
Britco belt cleaner features tough self-
adjusting replaceable tungsten carbide blades (non-
carbide also available) for extremely effective conveyor
belt cleaning.

Features & Benefits
Longwearing Abrasion Resistant Blades  available with replaceable V-Tips for vulcanized conveyor belts or C-Tips or F-Tips for conveyor belts with mechanical fasteners. Also available with Urethane and AR? 400 blades.

Impact Absorbing Tension Cushions  each individual blade to the belt for a controlled and effective belt cleaning across the entire width of the belt.

Compact Design  allows for an installation that requires less then 9´ of clearance to be installed and maintained.
Mechanical Splices No Problem  The Razor-Britco can be installed on belts with mechanical splices, due to the laid-back wiping blade angle and impact- absorbing tensioning cushions, allowing the mechanical splices to pass without damaging the belt cleaner or the splice.

Blade Cartridge  allows for easy change out of scraper blades from either side of the conveyor
Available Tensioning Systems  Bolt-Up, Duo-Spring, or Spring-Shock
Available Optional Spray-Bar  Spray nozzle sizes can be customized for any desired spray pattern and water pressure.

Product Specifications
* Maximum Belt Speed  1000 fpm (5.0 m/sec)
* Application  Coal Fired Power Plants, Hard Rock Mining, Steel Mills,
Iron Ore, Aggregate and Mineral (Phosphate, Potash, Salt) Mining.
Available Tensioners

Spring-Shoc
Utilizes a unique patent pending mounting plate that allows the cleaning blade to be spring tensioned in either a pull-up or push-up position. This specially designed configurability features two different mounting options that leave extra clearance above or below the bracket where necessary.

Razor-Back with Spray Bar
Razor-Back with Spray Bar is a secondary belt cleaner that uses a row of spray nozzles to spray a fine sharp stream of water at a 30° degree angle onto the conveyor belt where the carry-back material is difficult to remove. Water is applied to the belt in an overlapping spray pattern which places the particles into a fluid suspension, while moistening the belt.
The blades of the Razor-Back with Spray Bar are then able to make consistent contact with the conveyor belt surface to remove nearly 98% or more of bulk material coarse carry-back.

WASH BOX BELT CLEANING SYSTEM Works On The Return Side Of the Conveyor Belt The BRITCO Wash Box is installed as a secondary conveyor belt cleaner and is designed to work on the return side of the conveyor belt. Each steel enclosed box is equipped with a combination of pressure rollers, spray bars and Razor-Britco belt cleaners. It can also be customized to meet a conveyor systems? needs. The nozzles apply a spray of water which softens the bulk material carry-back and lubricates to maintain effective cleaning pressure. The BRITCO Wash Box provides the highest degree in belt cleaning technology. Features and Benefits

Fully Enclosed  the Wash Box system provides excellent cleaning while containing the wash waste fluid.
Removable Inspection and Service Door  on each side, with wash down hose included.
Dual Sets of Razor-Britco Secondary Cleaners  and dry wipe.
Two Spray Bars, Nozzles and Valves  soften the carry-back and provides gentle cleaning.
Equal Pressure ? Snub Idler provides equal pressure on both Razor-Britco cleaners.
6´ NPT Drain Pipe Available in  Stainless Steel, Galvanized and Powder Coated. Each steel enclosed box is equipped with a combination of pressure rollers, spray bars and Razor-Britco belt cleaners.

Product Specifications
 Maximum Belt Speed. 1000 (5.0 m/sec)  Applications  Coal Fired Power Plants, Bulk Shipping Terminals, Coal Preparation Plants, Underground Mining, Hard Rock Mining, Steel Mills, Iron Ore, Mineral (Phosphate, Potash, Salt) Mining
Wash Box Spray Bar The Wash Box? Spray Bars, apply an optimal spray of wáter which softens the carry-back for a gentle cleaning made by the secondary cleaner. To maximize the effectiveness the Wash- Box ?wash down? bar cleans the drain pan for any remaining carry-back to prevent clogging.


SUPER SCRAPER OF AIR FOR CONVEYOR BELTS MODEL: 2500 RAT

Powerful and Quiet Compressed Air
Blinds Drastically Reduce
Consumption! Its performance of
amplification of compressed air is of
40: 1

SUPER AIR SCRAPER FOR CONVEYOR BELTS

The Super Air Scraper for Conveyor Belts is the new generation of air curtains that dramatically reduce consumption and noise; Compared to other scraper systems. It is the most efficient way to clean conveyor belts by compressed air. It delivers a laminar flow, uniform and powerful along its entire length. Its amplification performance is 40: 1, which makes it suitable for most applications. This is a novel system and compact design. It complies with OSHA requirements, and has no moving parts, which makes it a maintenance-free application


Energy Cost Reduction The most efficient way to reduce Energy Costs is through proper maintenance and the use of systems that reduce the consumption of compressed air. Energy savings can also be achieved. The super scraper uses only 1/3 of the compressed air compared to other systems

Reduction of Noise Levels High noise levels are a common problem in most industrial plants. The sound produced by compressed air often exceeds OSHA restrictions resulting in a hearing loss over time for people in the environment. The noise level of the Super Air Scraper is below 70 dBA for pressures of 5.5 bar. By using this scraper it is possible to obtain a high impact force on the conveyor belt, without high levels of noise.


OPERATION OF THE SUPER AIR SCRAPER FOR BELTS CONVEYORS

The Compressed Air enters through the inlet (1) of the Super Air Scraper to a distribution chamber. This flow is directed to a precisely slotted hole. When this primary flow leaves the groove (2), it follows a flat surface which directs the air stream in a perfectly straight line. This creates a uniform sheet of air through the entire length of the Super Air Scraper. The velocity is minimized while the force is maximized by the ambient air (3) which is drawn into the primary stream with an increase of 40: 1. The result is a defined constant laminar flow and a strong impact force on the belt.

ADVANTAGE
*Quiet robust and compact.
* Low consumption of compressed air.
* 40: 1 amplification.  Uniform flow throughout its length.
* Easy to install-Air supply at both ends.
* No moving or maintenance parts.
* Flow and variable force, according to your need.

APLICATION
* Cleaning conveyor belts
* Drying of parts after washing
* Internal mill cleaning  Cooling of parts or components
* Drying or cleaning tapes  Separation of areas (virtual)
* Blowing in the prepainted

AIR SCREW MOUNTING SYSTEM FOR BELTS CONVEYOR

The Universal Model 2500 Mounting System is used to provide safe and flexible positioning for any Longitudinal Air Scraper. It can be easily and quickly targeted to improve its effectiveness. This system can be mounted on both the top and the bottom of the conveyor belts.

BELT CLEANER Speed and Force Of Belt Rolling
The Chevron secondary conveyor belt cleaner uses the speed and force of the belt rolling over our patented rubber disks. The unique rotary fingers are forced against the base of the chevrons to dislodge material from the belt.

Features & Benefits
Patented  concave shaped rubber discs perform a sweeping action to clean Chevron, raised top or grooved conveyor belts Sweeping Action  unique rotary fingers remove the carry-back and is designed to work only when the conveyor belt is running Easy Maintenance  no motors, air nozzles, or other problematic equipment to maintain Works Great  in the pulp and paper, fertilizer, potash, and other bulk material industries where chevron style belts are heavily used Solid or Notched  8´ (200mm) diameter abrasion resistant rubber disks are available depending on the spacing of the chevrons and the conveyor belt speed System  Single or dual system for better cleaning Available  in rubber, urethane, solid or notched disks

Product Specifications
* Maximum Belt Speed  500 (1.5 m/sec)
* Applications  Wood Processing, Mineral (Phosphate, Potash, Salt) Mining, Recycling

Britco Discs
Unique rotary fingers are forced against the base of the chevrons to dislodge material from the belt.

*  abrasion resistant rubber disks provide a gentle, thorough squeegee action for very effective cleaning
* Disks are independently flexible so each disk rapidly adjusts to belt variation, wear and cupping  Disks work well on vulcanized or mechanical splices
* Disk life is one to four years depending on material and
operating conditions  Handles corrosive and abrasive materials  wet or dry
* Notched disk for 1 foot pitched Britco or less
* Solid disks for 2 foot pitched Britco or more

SUPER SCRAPER OF AIR FOR CONVEYOR BELTS MODEL: 2500 RAT

Perfect For Small Diameter Pulleys Where Space Is An Issue The unique Mini-Britco conveyor belt pre-cleaner is designed for small diameter pulleys where space and size is a factor. This belt cleaner is ideal in situations where the head pulley is less then 16? (400mm) in diameter or tight locations.
Features and Benefits

Excellent Performance  of our patented Mini-Britco blade design maintains an effective cleaning edge throughout the life of the blade and can be changed for the optimum in blade coverage across the belt?s material carry path for better cleaning efficiency.

Blade Cartridge  allows for easy change out of scraper blades from either side of the conveyor.
E-Z Britco Tensioner  (lifetime warranty) patented- made of all 304
stainless steel mounting plates, collars and springs allows the blades to self adjust throughout the entire life of the blade and is the most robust and accurate belt cleaner tensioner in the industry. Combined with the E-Z Britco tensioner, the Mini-Britco primary belt cleaning system provides our customers with a belt cleaner that can handle the most extreme corrosive and weather conditions. Blade Angle A flat pulley surface side of the blade ensures a sharp point contact and material clearance.

* More Aggressive
* Self-Sharpening
* Less Abrasion Between Blade and Belt
* Less Chance of Blade Feathering
Product Specifications
* Maximum Belt Speed  500 fpm (2.5 m/sec)
* Pulley Diameter: 6" a 22" (150-550mm)
* Application: Aggregate, Sand & Gravel, Redi-Mix and Asphalt, Cement, Wood Processing Recycling

Mini Britco with E-Z Britco Tensioner

Also available with Force-1 Tensioner
* Simple and Accurate
* Superior Elasticity
* Excellent for worn belts
* Stainless steel pin with lanyard
for easy change-out. Single hand tensioner
* Torque wrench adaptor supplied
to get accurate torque tension.  100% Lifetime warranty
* US Patent Number 5,992614
